Channel letter metal bending machines High precision for AD signs 0.4 - 1.2mm
Machine description

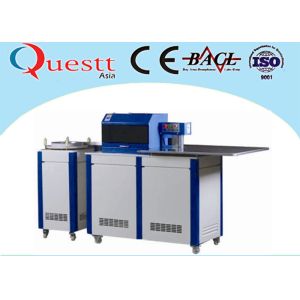

QA-BB200 Channel letter bender machine is a multifunctional type CNC bending machine, which can bend both aluminum and steel , combine with laser cutting and welding machines to make Channel letter signs board with company name and logo on sidewalls.
It is a very popular buniness oppotunity with the explosure of advertising industry, so this is very a good chance to grab this oppotunity and make your business better and better.
It is based on precision of transmission machinery structure and retractable alternative bender, using pre-feeding leveling , clamping alternate feeding and silk rod double screw thumb planer opened slot way, controlled by Quess Bending CNC system developed, coinciding with the various kinds of precision cutting of panels, especially fit for letters with small angle and radian , and the procession of complex graphics , which is the best machine for the fabrication of LED channel letters, stainless steel letters, Piercing letters, Epoxy letters.
It has not only all functions of traditional model, but also it can make notching and flanging automatically for flat aluminum coil.
Applications
Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized sheet bending ect. See below photo
Industries: advertising industry, such as logos, signs, billboards, light boxes production, outdoor advertising and other advertising productions.
Features
1. Retractable alternative bending format, low bending scratch,
2. Coincide with the various kinds of precision cutting of panels 99%;
3. Long tool working life, low slotting cost
4. Fast feeding speed, clamp and alternation feeding format,
5. The slotting depth can be controlled by CNC axis, which can meet different demand of different materials
6. Roll-feed, with the unique closed-loop design and professional parameter database, controlled by CY-Auto Bend and ensuring that feed high-accuracy output;
7. It adopts two servo motors that makes feeding and bending speed faster
8. Develop a self-make new software, match with machine working well and make easier process higher precision.
9.Adopts planner slotting way, making slots well and wasting cost.
10. Servo motor for notching function with high speed, pneumatic flanging for right angle and no burr with notching.
11. Maximum feeding speed 20m/s, no rolling-sliding , no scratch on appearance,
12. High quality with best factory price.
Technical Parameters
CNC Bending Machine Double Head HQ.pdf
| Model: | QA-SB200 metal bending machines |
| Type | PC computer Control |
| Bending Material: | Aluminum SS Galvanized sheet |
| Max. Processed Thickness: | 0.4-1.2 mm |
| Max. Processed Width: | <120 mm |
| Min. Bending radius | R7mm |
| Min. Distance between interior angle and exterior angle | 4.5mm |
| Bending distance from start angle | 3mm |
| Voltage: | 220V |
| Weight: | 500KG |
| File format | PLT |
| Feed speed: | 5~20 m/ min |
| Precision | 0.05 mm |
| Service | Engineer available to service overseas |
Special tools
Machine overview
